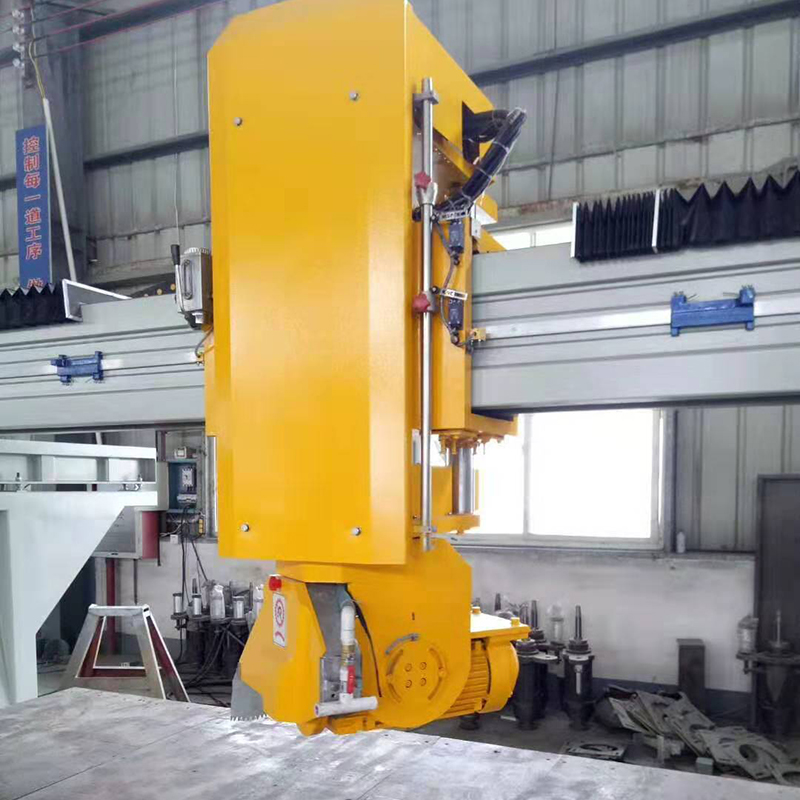

FRT-350B laser bridge saw cutting machine
This machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.
| 型號 | TYPE | Unit | FRT-350B |
| 鋸片直徑 | Blade diameter | mm | ￠300-￠450 |
| 最大加工尺寸（長x寬x厚） | Max.working dimensions(LxWxH) | mm | 3200x3200x100 |
| 工作臺尺寸（長x寬） | Table size(LxW) | mm | 3200x2000 |
| 工作臺翻板角度 | Workbench tilting degree | n° | 0°-85° |
| 機頭旋轉 | Head rotating degree | n° | 0°-90° |
| 機頭傾斜 | Head tilting degree | n° | 0°-45° |
| 工作臺旋轉角度 | Workbench rotating degree | n° | 0°-90°+45°/0°-45°-90°-360° |
| 主電機功率 | Main motor power | kw | 15 |
| 總功率 | Gross power | kw | 20.2 |
| 耗水量 | Water consumption | m3/h | 3.5 |
| 外形尺寸（長x寬x高） | Overall dimension(LxWxH) | mm | 6000x4800x3000 |
| 總重量 | The total weight | kg | 6300 |
